ACUFLOW™

A revolution in reliable flow measurement for industrial gray and potable water applications

Ingenious in concept and flowless in operation, AcuFlow™ is revolutionizing the way flow is measured.

With unrivaled accuracy, greater installation flexibility, and more independently certified models than any other brand of flow meter, it’s easy to see why AcuFlow™ is a flow meter that you can put your trust in.

Features include:

  • Available for 1.5” - 8” pipe diameters

  • Pressure rated to 125 psi

  • Digital upgrade available

  • Easy & intuitive installation

  • >98% average accuracy

For a variation of this product developed specifically for swimming pools and spas, please consider the FlowVis® flow meter.




PRODUCT LITERATURE



SPECIFICATIONS

Pipe Diameters1.5", 2", 2.5", 3", 4", 6", 8",
Average Accuracy±1.9% across the entire model range
Pressure Rating125 psi
Warranty15-year design life, 3-year warranty
Head LossesPlease refer to product brochure or manual
Material DataPlease refer to product brochure or manual

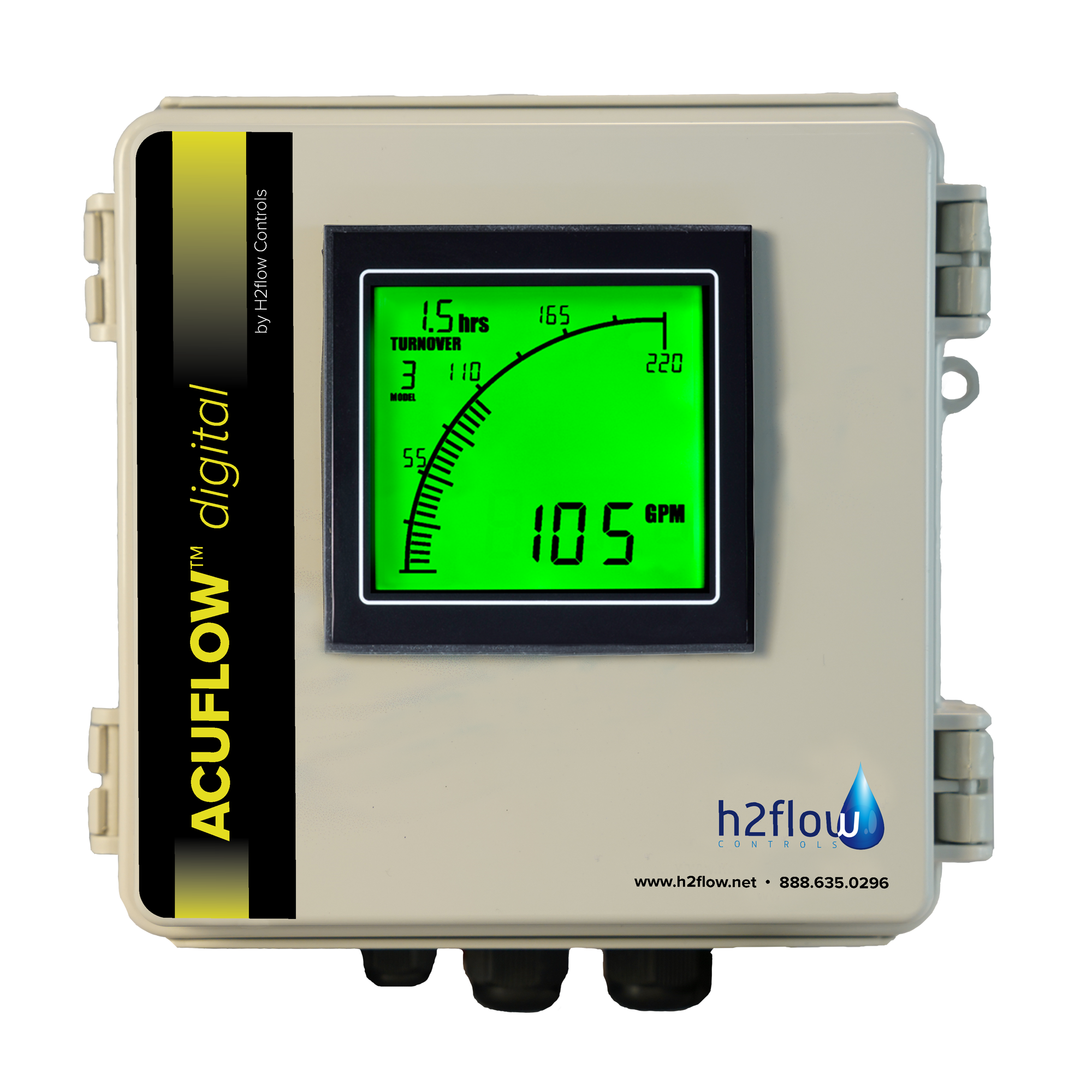

AcuFlow™ Digital Configurator

By going through the ‘Advanced Setup’ procedures of AcuFlow™ Digital, several very useful features can be accessed. These features include:

  • Display of turnover rates

  • Changing the display’s appearance at a user-defined flow rate

  • Programming an (optional) auxiliary relay to operate external equipment at user-defined flow rates

In order to access these features, please downloaded the APM Configurator and refer to the AcuFlow™ Digital manual for step-by-step instructions.



available models

AF-15

AF-2

AF-25

AF-3

AF-4

AF-6

AF-8

Description
AcuFlow for 1.5" pipe with GPM & LPM scale and check valve function
AcuFlow for 2" pipe with GPM & LPM scale and check valve function
AcuFlow for 2.5" pipe with GPM & LPM scale and check valve function
AcuFlow for 3" pipe with GPM & LPM scale and Tee
AcuFlow for 4" pipe with GPM & LPM scale and Tee
AcuFlow for 6" pipe with GPM & LPM scale and 6 x 3 saddle-clamp
AcuFlow for 8" pipe with GPM & LPM scale and 8 x 4 saddle-clamp
Average Accuracy
98.7%
99.4%
99.2%
98.9%
99.6%
98.1%
98.9%*
Accuracy Independently Verified by NSF
Yes (Level 1)
Yes (Level 1)
Yes (Level 1)
Yes (Level 1)
Yes (Level 1)
Yes (Level 1)
Yes (Level 1)
Pipe Type
SCH40
SCH40
SCH40
SCH80
SCH80
SCH80
SCH80
Flow Measurement
GPM & LPM
GPM & LPM
GPM & LPM
GPM & LPM
GPM & LPM
GPM & LPM
GPM & LPM
Calibration Required?
No
No
No
No
No
No
No
Warranty
3-Years
3-Years
3-Years
3-Years
3-Years
3-Years
3-Years
Design Life
15-Years
15-Years
15-Years
15-Years
15-Years
15-Years
15-Years
Spring Replacement
7-Years
7-Years
7-Years
7-Years
7-Years
7-Years
7-Years
Manufactured in USA
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Similar Models For
Union-style fittings, Digital add-on
Union-style fittings, non-sealing, Digital add-on
Digital add-on
Digital add-on
Digital add-on
Digital add-on
Digital add-on (supplied as standard)

*Accuracy of AcuFlow model AF-8 with Digital display (supplied as standard with AF-8)
