overview

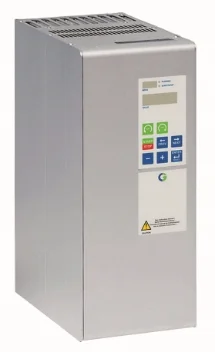

The Emotron MSF 2.0 Soft Start offers optimized start and stop sequences, advanced braking techniques and built-in monitor functionality. The MSF is developed for pump, fan, compressor, blower, crusher, mill, mixer, and saw applications.
Key Features
Torque ramp starting and stopping
Torque ramp with current limit
Built-in M20 Shaft Power Monitor
Jog forward and jog reverse
Motor braking
Four parameter sets
Supply monitoring and protection
Full voltage (emergency) start
Pump application software
Multiple parameter digital readouts
Product Literature
GALLERY
Emotron MSF used to perform soft start on an odor control fan application.
An Emotron MSF is used to provide a torque controlled soft start and soft stop on an odor-control-fan application.
Technical Data
| RATED POWER | 7.5 - 1,600kW |
| SUPPLY VOLTAGE | 230-690V, 3-phase |
| RATED CURRENT | 17 - 1,650 Amps |
| PROTECTION CLASS | NEMA1 / IP20/NEMA 1 (up to 960A); NEMA 0 / IP00 (up to 1,650A) |
| APPROVALS | CE, UL, DNV, GOST R |
Starting currents reduced by +20% versus reduced voltage Soft Starts
MORE THAN JUST ANOTHER SOFT START
With torque controlled starting and stopping, and a built-in patented shaft power monitoring feature, the MSF's ability to provide control and complete protection of your applications is unparalleled.
The Emotron MSF is among the most advanced Soft Starts available. Unlike previous generations of electric Soft Starts, the MSF starts and stops the motor using the torque controlled ramps. This principle not only provides ultra smooth starting and stopping, but also lowers starting currents by an additional 20% versus reduced voltage Soft Starts.
MSF versus alternative starting methods (x FLA)
ULTRA SMOOTH STOPPING & STARTING
USING TORQUE CONTROL WITH THE MSF
Models & Ratings
Emotron MSF 2.0 Soft Start
MSF 2.0 Soft Start, 525V type
