ECO-FLOW-F®
Variable Frequency Drive for Fountains
OVERVIEW PRODUCT LITERATURE GALLERY TECHNICAL DATA FOUNTAIN CONTROLLER
Overview
Introducing the Eco-Flow-F® Aquatic Variable Frequency Drive for fountain control.
Eco-Flow-F combines functionality, quality, and reliability to provide the user with an unparalleled VFD experience. Fully configured for control of fountains, Eco-Flow-F offers an array of unique features to ensure complete optimization of fountain pumps while also maintaining ease of operation and user-friendliness.
Eco-Flow-F is designed for 3-phase or (optional conversion for) single-phase centrifugal pumps ranging from fractional thru 100 horsepower.
Key Features & Benefits
Fixed speeds 24hr.
Fixed speed daytime / fixed speed nighttime
Six programmable steps with ramp up or ramp down or constant speed
Two preset wind speeds for inclement weather situations
Rugged NEMA 12 construction
Aquatic Controller with Modbus communication
Interface to BMS (Building Management System) for monitoring and control
Protection against Pump dry run, cavitation, worn impeller, closed suction / discharge valves, loss of prime, power loss
Live local and national support for prompt assistance if needed
Product Literature
Gallery
Technical Data
| INSTALLATION ENVIRONMENT | Indoor, wash down, corrosive gases possible |
| SUPPLY VOLTAGE | 3 x 208/230V, ±10% / 3 x 480V, ±15% |
| HP RANGE | 1 - 100 HP |
| CONSTRUCTION | NEMA 12 |
| OPERATING TEMPERATURE | 32 - 104°F (122°F with de-rating) |
| SUPPLY FREQUENCY | 50 - 60Hz |
| RELATIVE HUMIDITY | 90% or less |
| MAX. ALTITUDE WITHOUT DE-RATING | 3,280 ft. de-rate by 1% for every 328 ft. over this. Max. 13,123 ft. |
| OUTPUT VOLTAGE | 0 - Mains Supply Voltage |
| RATED OUTPUT CURRENT | Current rating of VFD, 120% overload for one-minute |
| VFD EFFICIENCY AT NOMINAL LOAD | 97% |
| SPEED CONTROL | via Eco-Flow Controller. Programmable speeds based on time |
| COMMUNICATION PROTOCOL BETWEEN VFD AND ECO-FLOW CONTROLLER | Modbus |

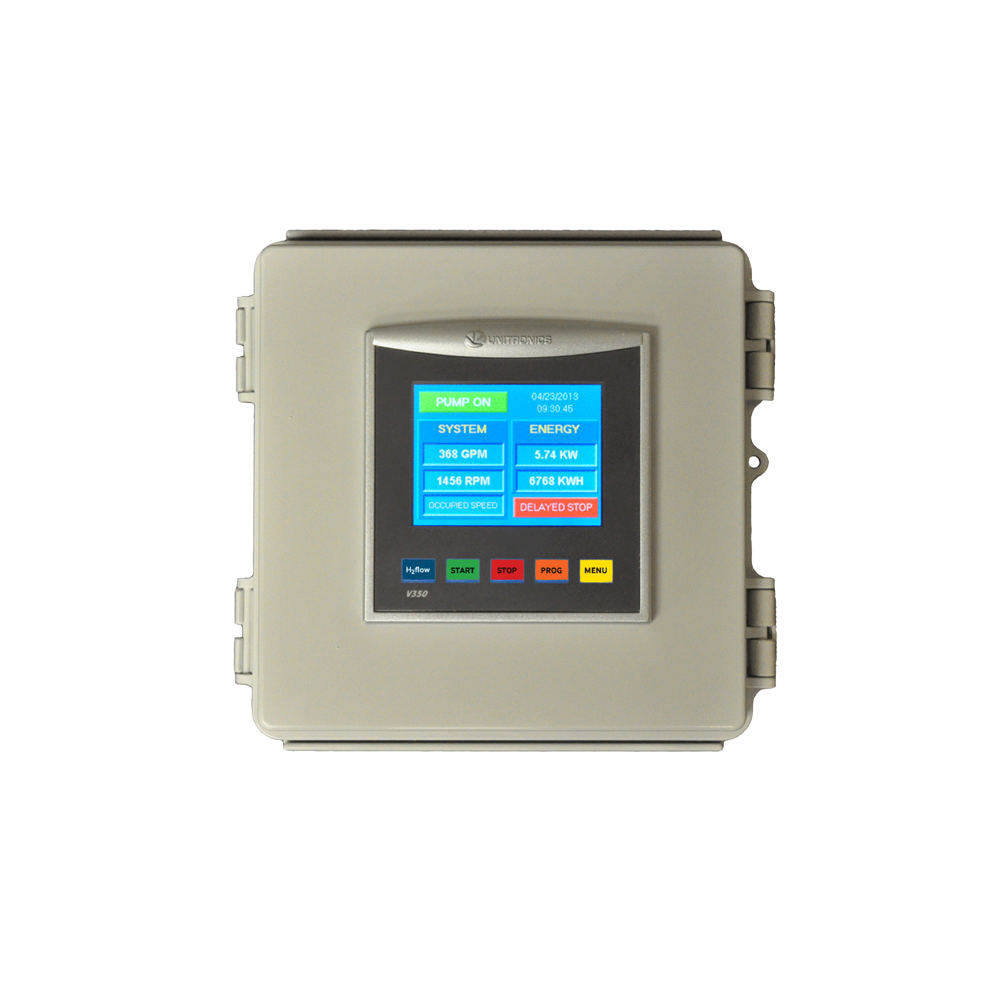

Fountain Controller
Complete optimization & customization of fountain operation
Complete control of fountain applications couldn’t be easier, thanks to the Eco-Flow Fountain Controller.
The Fountain Controller’s intelligent display can quickly and easily be configured to the user’s desired settings. Customization of fountain appearance, hours of operation, auto shutdown for inclement weather and much more, can be easily achieved via the user-friendly touchscreen.
