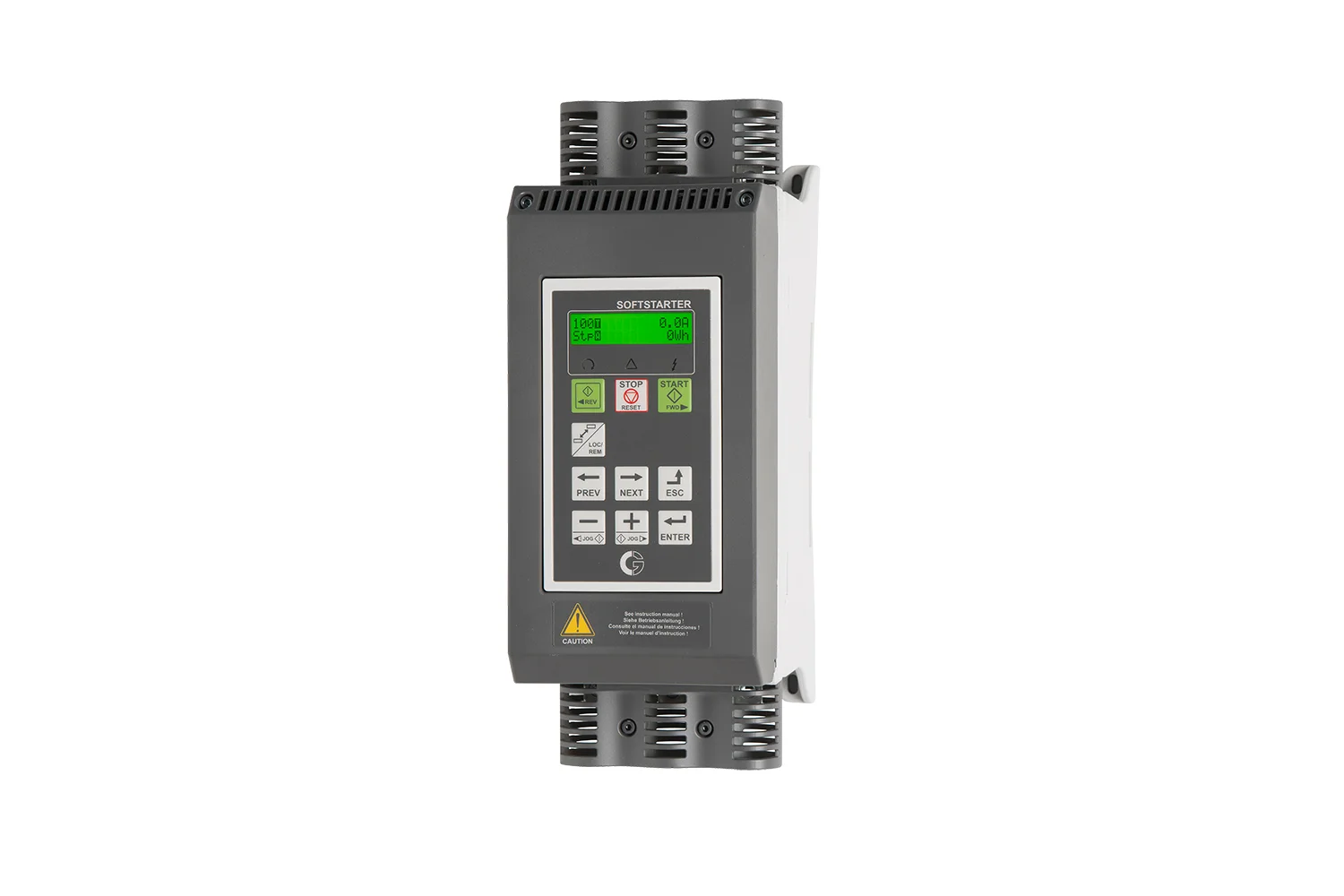

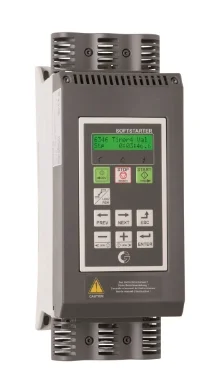

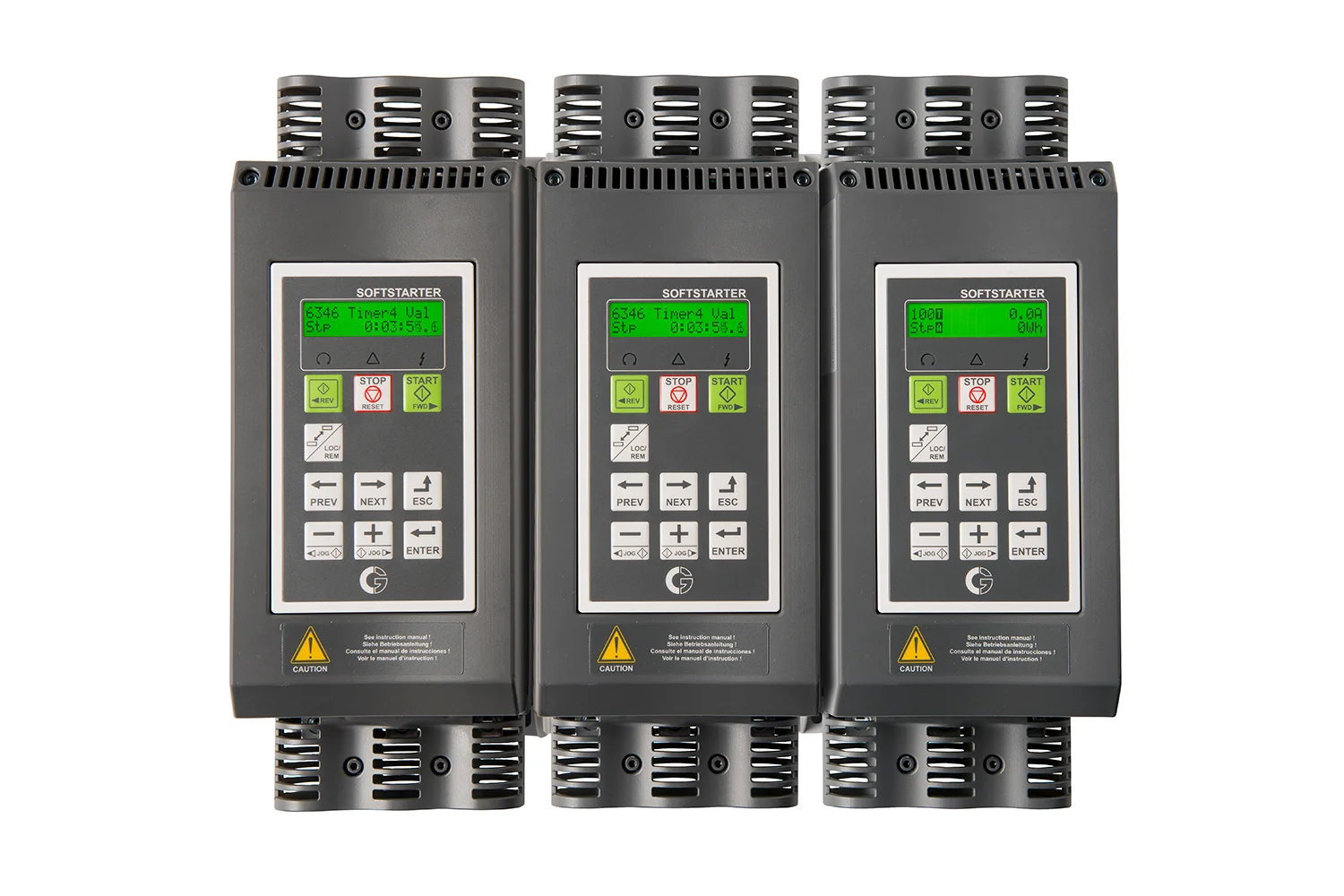

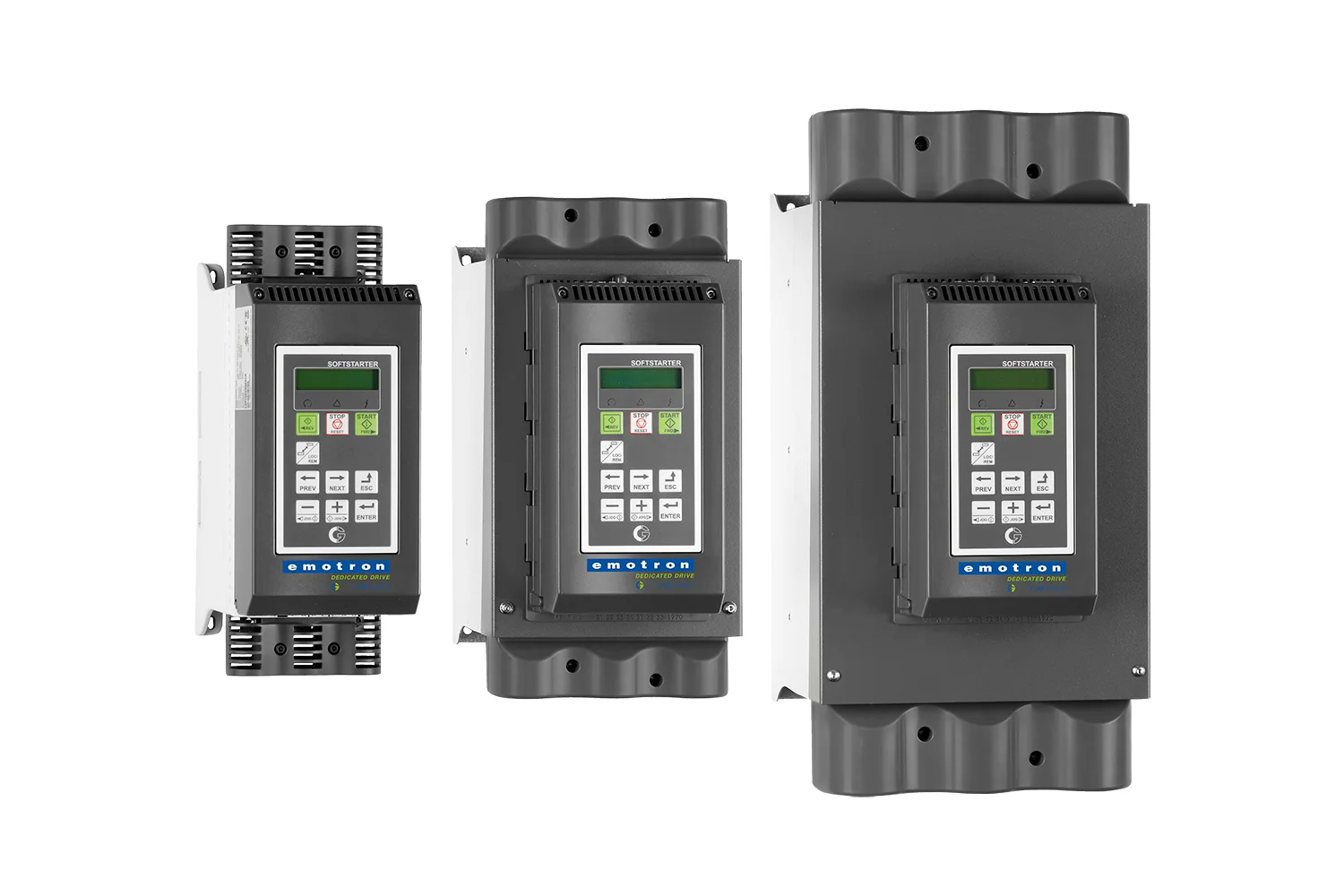

Emotron TSA Soft Starts take motor control to a new level. Soft torque starting, intelligent load monitoring, and smart stops are all included and accompanied by a robust and compact design. The TSA Soft Start is developed for pump, fan, compressor, blower, crusher, conveyor, mill, mixer, and saw applications.

Key Features

• Intelligent shunt-rated bypass contactor

• Torque ramp with current limit

• Motor load monitoring with auto-set of alarm levels

• Programmable logical and timer functions with Real Time Clock

• Multi-lingual control panel with single-function keys and copy function

• Compact dimensions

• Conformal coated circuit boards

• Slow speed and jog operation

• Smart stops with built-in braking functionality

Adjusting the motor torque is best done by controlling the current in all three phases. 3-phase control offers symmetrical and balanced currents without the drawbacks of additional energy losses, noise and vibration normally connected with 2-phase soft starters.

Emotron TSA Soft Starts incorporate 3-phase control together with sophisticated algorithms for torque control. Conventional Soft Starts use a pre-defined voltage ramp to control the start. With Emotron TSA, the actual motor torque is continuously calculated and controlled according to the application requirements. This torque control ensures an ultra-smooth start with constant acceleration. The torque control means the starting current is reduced even further by up to 20%. You can use smaller fuses and less expensive cables, and will thus benefit from lower installation and energy costs. The smooth starts also lead to less mechanical stress, improved process control and reduced maintenance costs.
