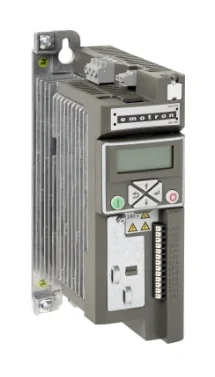

Although small in size, the new Emotron VS10 and VS30 drive is equipped with several advanced features. It offers great flexibility in all senses. Functionality is easily adapted to your specific application requirements.

Key Features

• 1.1 - 16.5 Amps

• NEMA 250 / IP20 enclosure

• Sensor less vector control

• S-shaped ramps for smooth acceleration

• Memory module for parameter backup

• Phase and current protection

• Load loss monitoring

• Fieldbus, Modbus-RTU, USB, and WiFi communication options

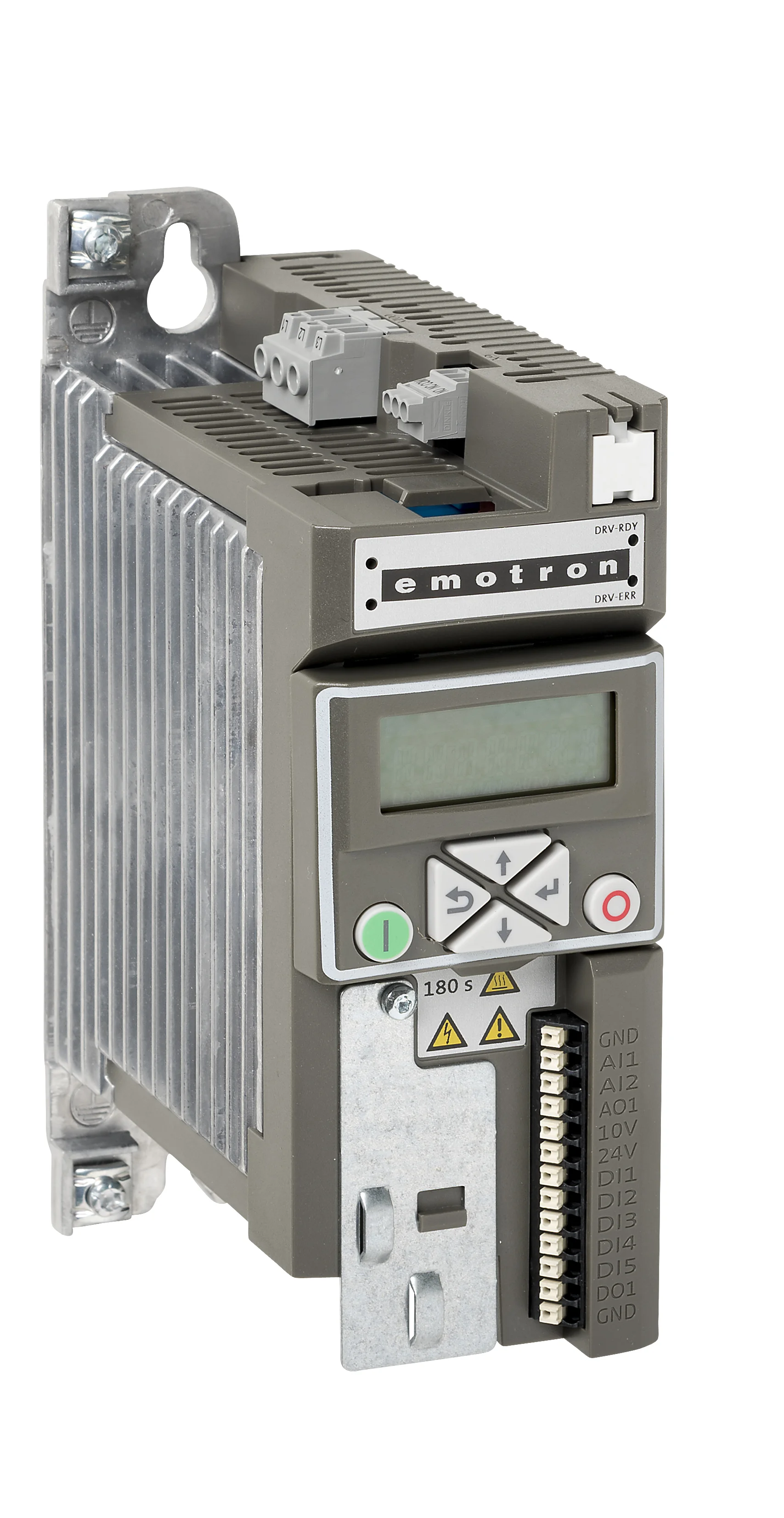

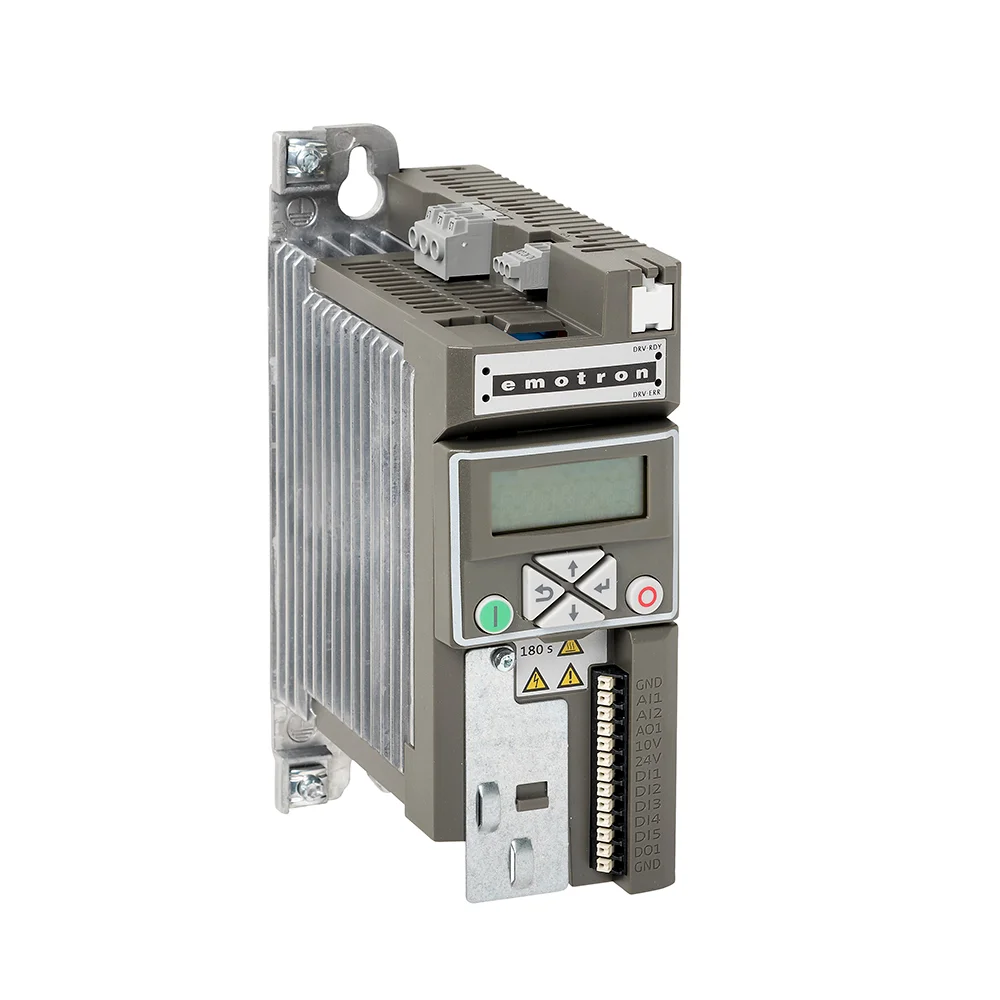

1. Key-hole mounting

2. Main Power Supply (removable connector ≤ 2.2 kW)

3. Motor Power Terminal (removable connector  ≤ 2.2 kW)

4. Relay output

5. Memory module (parameter backup)

6. CAN connection with shield plate fixation (option)

7. HMI interface: Control panel hot-pluggable (option)

8. I/O Terminal with shield plate (removable terminals > 2.2 kW)

COMPACT & FLEXIBLE

The compact format offers flexible installation and the user-friendly setup will have your system up and running in no time.

Emotron VS10 and VS30 offers reliable and cost-efficient operation of your pumps, fans, and compressors, as well as constant torque applications such as conveyors.

user-friendly

Flexibility begins with the compact bookshelf design format, which makes the units easy to install, and extends to their user-friendly setup procedure. Systems using the VS10/VS30 will be up and running in not time, ready to deliver smooth and cost-effective control of your application.

A COMPACT PACKAGE

The VS10 range covers nominal ratings of 0.25-2.2 kW (1-phase 230V). The larger VS30 spans 0.37-7.5 kW (two-series; 1/3-phase 230V, 3-phase 400/480V). The smallest of these NEMA 1 / IP20-rated units are 2.36 x 6.1 x 5.12 in. (60 x 155 x 130 mm), and even the largest are only 4.72 x 10.8 x 5.12 in. (120 x 275 x 130 mm).

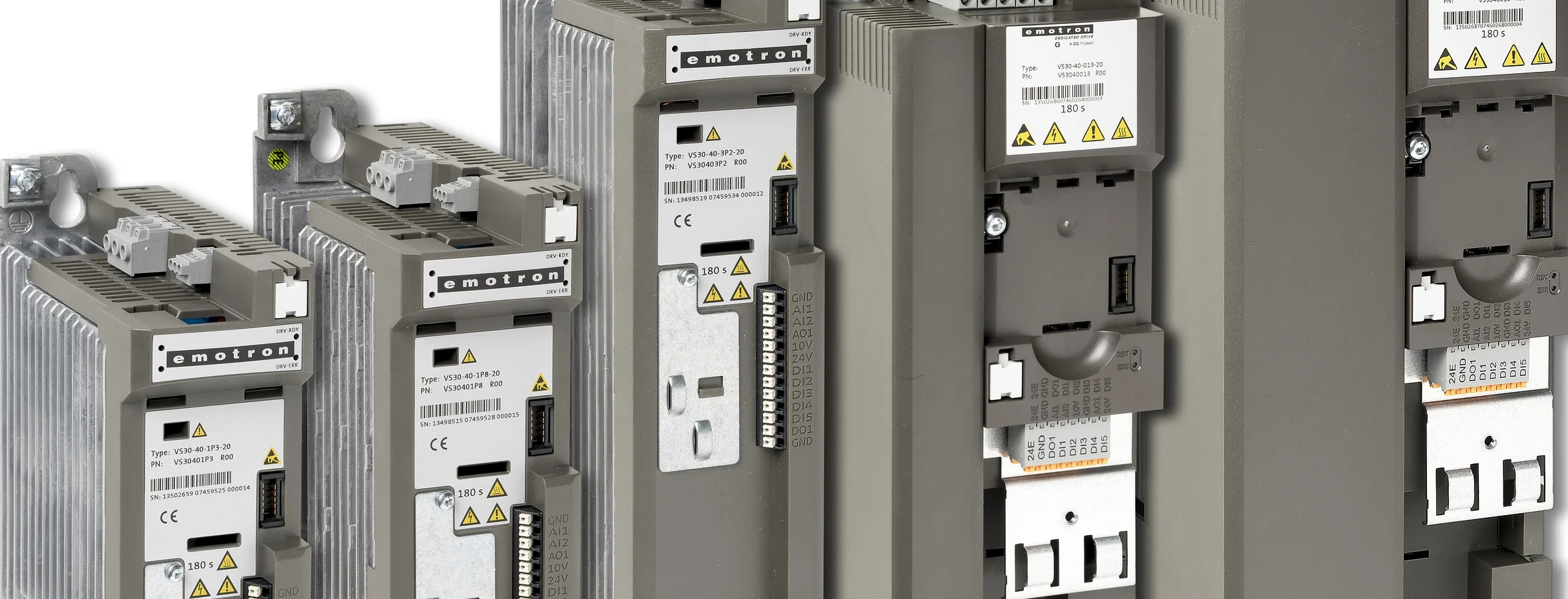

VS10/30 Frame Sizes:
