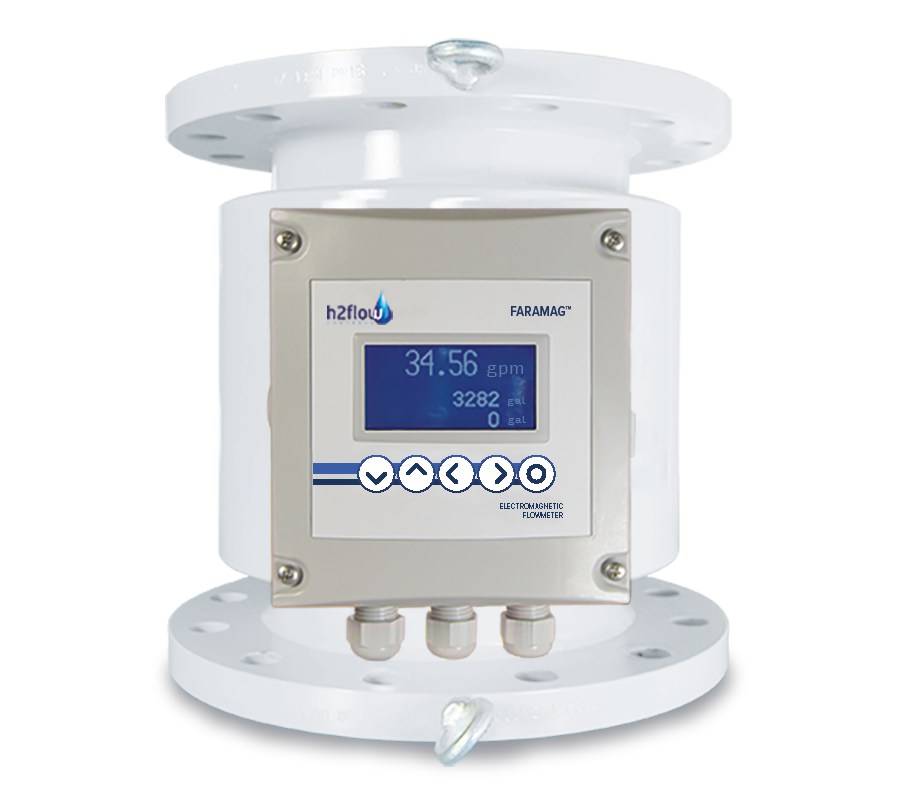

FARAMAG™ FM500
Where precision meets reliability
FaraMag™ FM500 flow meters from H2flow Controls use the electromagnetic principle to measure the flow of conductive liquids. There are no moving parts in contact with the liquid, meaning the flow meter isn’t affected by any solid particles that may pass through the pipe, and there is no resulting pressure drop. The result? With FaraMag™ you will always Know the Flow™!
Features include:
High quality, carbon steel construction
Bi-directional flow measurement in GPM, LPM, or m3/h
Large, user-friendly digital display with intuitive controls
Compact and remote versions available
Long operating life
Available for 0.75-inch to 48-inch pipe diameters
Pressure rated for 145 psi to 232 psi
Flow range: 0.51 - 149,311 GPM
Accuracy: 1.64 - 32.8 ft/s: ±0.25%; 0.33 - 1.64 ft/s: ±1%
Various communication options including: HART, RS232, RS485, M-BUS, SMS
PRODUCT LITERATURE
SPECIFICATIONS
| Pipe Diameters | 0.75", 1", 2", 3", 4", 6", 8", 10", 12", 14", 16", 20", 24", 28", 32", 36", 40", 48" |
| Average Accuracy | ±0.25% of the measured value from 1.64 - 32.8 ft/s; ±1.0% of the measured value from 0.33 - 1.64 ft/s |
| Pressure Rating | 145 psi (PN10) and 232 psi (PN16); 363 psi (PN25) and 580 psi (PN40) on request |
| Material | Carbon Steel |
| Inner Liner | Hard Rubber (PTFE optional) |
| Protection Class | IP67: sensor (IP68 optional); IP65: convertor (IP67 optional) |
| Voltage | 230VAC & 12/24VDC |
