overview
H2flow pre-configured control panels are engineered to exacting standards and feature UL 508 and UL 698 certification. Every panel is manufactured using only the highest quality materials at our facility in Sylvania, Ohio.
Types of pre-configured control panels offered:
DCM Simplex ATL, NEMA 4 or NEMA 4X, for floatless control of a simplex submersible pump application with across-the-line starting.
DCM Duplex ATL, NEMA 4 or NEMA 4X, for floatless control of a duplex submersible pump application with across-the-line starting.
DCM Simplex Soft Start, NEMA 4 or NEMA 4X, for floatless control of a simplex submersible pump application with use of a Soft Start.
DCM Duplex Soft Start, NEMA 4 or NEMA 4X, for floatless control of a duplex submersible pump application with use of a Soft Start.
ATL Simplex float control, NEMA 4 or NEMA 4X, for across-the-line starting of a simplex submersible pump application.
ATL Duplex float control, NEMA 4 or NEMA 4X, for across-the-line starting of a duplex submersible pump application.
Soft Start Simplex float control, NEMA 4 or NEMA 4X, for simplex control of a submersible pump application with use of a Soft Start.
Soft Start Duplex float control, NEMA 4 or NEMA 4X, for duplex control of a submersible pump application with use of a Soft Start.

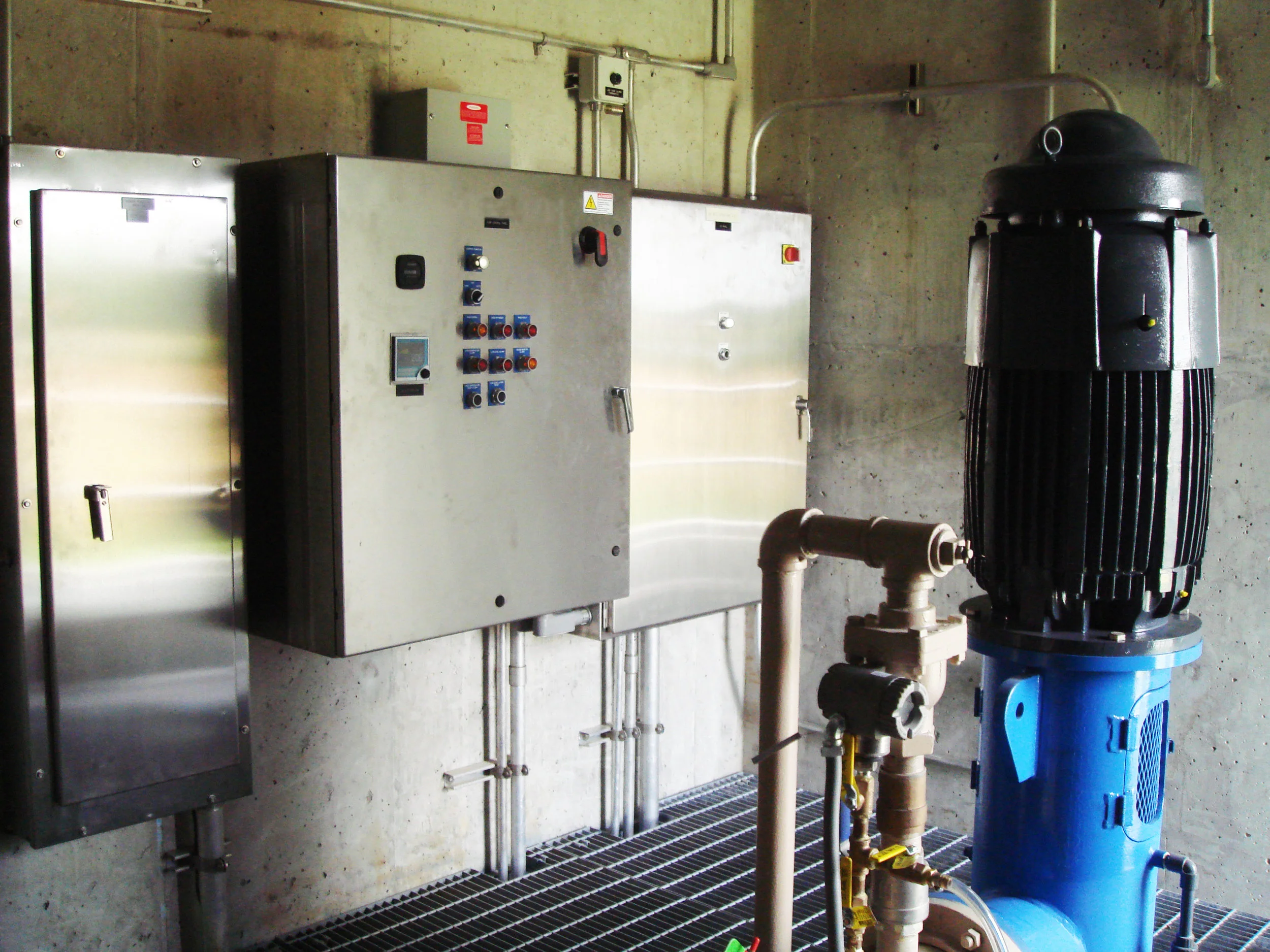

Gallery
Key Features
ROBUST CONSTRUCTION
H2flow control panels are built to exacting standards and feature UL 508 and UL 698 certifications.
ADVANCED FUNCTIONALITY
Panels from H2flow that include Emotron VFDs and Soft Starts feature advanced communication and software options.
SUPPORT
All H2flow control panels include first-class service and support from one of our qualified support technicians.
ADDITIONAL features
NEMA 4 or NEMA 4X enclosure
Main incoming line circuit breaker disconnect with thru-door-disconnect handle mechanism
IEC-rated Across-The-Line contactor with electronic thermal overload relay
Control power transformer with dual primary and single secondary fusing
Emotron Drainage Control Monitor for pump control
Hand-Off-Auto selector switch
Alarm pilot light (red)
Alarm reset pushbutton
Run pilot light (green)
Customer terminal blocks including temp and seal leak
Wire-markers, electrical schematics
““We have never received panels of this quality and will continue to use H2flow Controls for all of our future needs.””
