The VFX AC Drive offers reliable, cost-effective, and user-friendly operation of constant torque applications such as crushers, mixers, mills, conveyors, or any other constant torque application that requires accurate and dynamic speed control.

Key Features

  • 3 - 2,500 Amps

  • NEMA enclosure (available in NEMA 1 and NEMA 12 configurations)

  • Unique Shaft Power Load Curve Monitoring and Protection

  • Internal Speed Controller

  • Integrated Vector Braking

  • Sleep function

  • Process language feature, i.e., display GPM

  • Copy function via detachable display unit

  • Smaller footprint than competing VFDs



Product Literature



Product Brochure: English | Spanish

High Power Product Brochure: English

English | Spanish

English | Spanish

VFX 2.0: English | VFX 2.0: Spanish

VFX 2.0-2Y: English | VFX 2.0-2Y: Spanish

VFX 2.0: English | VFX 2.0: Spanish

VFX 2.0-2Y: English | VFX 2.0-2Y: Spanish

Crane Option 2.0: English

I/O Board: English

Encoder 2.0: English

PTC/PT100: English | PTC/PT100: Spanish

Safe Stop: English

External Control Panel 2.0: English | External Control Panel 2.0: Spanish

External Control Panel: English | External Control Panel: Spanish

Output Coils: English

Overshoot Clamp: English

Liquid Cooling: English

Marine Supplement: English

Synchronizing/Bypass: English

Fieldbus 2.0: English

Serial Communication 2.0: English

Modbus TCP: English

etherCAT: English

Profinet IO: English

HMS anybus gateway: English

CE Declaration: English

DNV Marine Approval: English

UL Approval, Size B: English

UL Approval, Size C: English

UL Approval, Size C2: English

UL Approval, Size D: English

UL Approval, Size D2: English

UL Approval, Size E: English

UL Approval, Size E2: English

UL Approval, Size F: English

UL Approval, Size F2: English

UL Approval, Size G-O: English

UL Approval, VFX Options: English

EAC Certificate: Russian

ROSGOSTEHNADOR Certificate: English

TUV Certificate "Safety function STO": German

Drilling Template, Frame Size B: English

Drilling Template, Frame Size C: English

Drilling Template, Frame Size C2: English

Drilling Template, Frame Size D & D2: English

Drilling Template, Frame Size X2: English

Drilling Template, Frame Size E & E2: English

Drilling Template, Frame Size F & F2: English

Drilling Template, Frame Size F69: English

Drilling Template, Frame Size G: English

Drilling Template, Frame Size H/J: English

Drilling Template, Frame Size H69/J69: English

Drilling Template, Frame Size I/K: English

Drilling Template, Frame Size I69/K69: English



Gallery

TECHNICAL DATA



NEMA 1 (IP20) version

RATED POWER11 - 132kW
SUPPLY VOLTAGE230-480V, 3-phase
RATED CURRENT25 - 244 Amps
PROTECTION CLASSIP20/NEMA 1
APPROVALSGlobal Standards


NEMA 12 (IP54) version

RATED POWER0.75 - 3,000kW
SUPPLY VOLTAGE230-690V, 3-phase
RATED CURRENT2.5 - 2,500 Amps
PROTECTION CLASSIP54/NEMA 12
APPROVALSCE, UL, DNV, GOST R


Optimized for Efficiency

efficient starts and stops

Efficient and protective starts are ensured with Emotron VFX. Reduced start currents, thanks to direct torque control result in smaller fuses, cables, and energy bills. Torque can be boosted to overcome initial peak loads. Integrated vector braking ensures quick and controlled stops, increasing productivity and safety.



Optimized operation and full control

The direct torque control reacts extremely quickly and eliminates disturbances due to abrupt load changes. A built-in load monitor and a unique Load Curve Protection function protect your process by immediately detecting any situation that could cause inefficiency or damage. Early warning and safety stops for over- and underloads allow preventative action.



cost-effective and flexible installation

The compact standalone 2.5 - 250A units are NEMA 12 (IP54) classified. The robust, all-metal construction can be installed close to the application, which eliminates the cost of cabinets and long motor cables.

2,100HP

VFX Drives are available for applications thru 2,100HP.

models & ratings

Available in NEMA 1 and NEMA 12 configurations

The Emotron VFX is available in both NEMA 1 (IP20/21) and NEMA 12 (IP54) configurations. The robust steel construction of the NEMA 12 version means that the drive can be installed close to the application, reducing the cost of additional cabinets and motor cables. The 300 - 1,500A units (NEMA 1 modules) are also available in compact CG-designed NEMA 12 cabinets. The 25 - 244A, NEMA 1 series units are optimized for mounting in control cabinets or on an electrical room wall. Its robust yet compact design allows for easy access to power terminals. Extended temperature range up to 130°F (55°C).



vfx Frame Sizes:

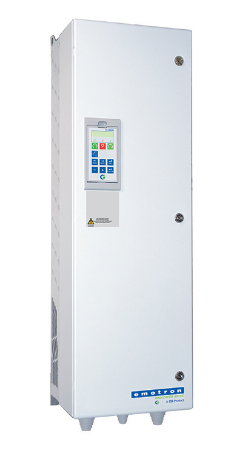

Emotron VFX 2.0 Variable Frequency Drive in NEMA 12 / IP54 configuration.

Emotron VFX 2.0 Variable Frequency Drive in NEMA 12 / IP54 configuration.

IP54 version VFX 2.0 Models

  • Power @460V [HP]
  • Power @460V [HP]
Additional models thru 2,100HP available

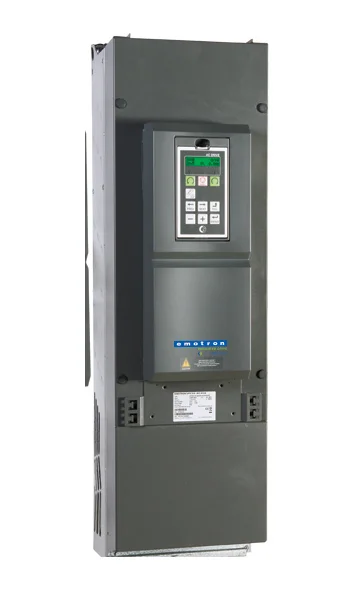

Emotron VFX 2.0 Variable Frequency Drive in NEMA 1 / IP20 configuration.

Emotron VFX 2.0 Variable Frequency Drive in NEMA 1 / IP20 configuration.

IP20 VERSION VFX 2.0 MODELS

  • Power @460V [HP]
  • Power @460V [HP]
Additional models thru 250HP available


Pulse Width Modulation (PWM)

In 1977, Emotron was the first company to introduce an AC Drive based on Pulse Width Modulation (PWM). Further developments led to one of the first market launches of AC Drives with direct torque control in 1998. The Emotron technology has an extremely fast response time, since actual and required torque is compared 40,000 times per second.

Emotron AC Drives can provide the highest possible torque per ampre from a normal industrial motor, offering the option of controlling a motor without a rotor sensor while still maintaining control of torque and speed.
