Introducing the next level in flow meter technology…

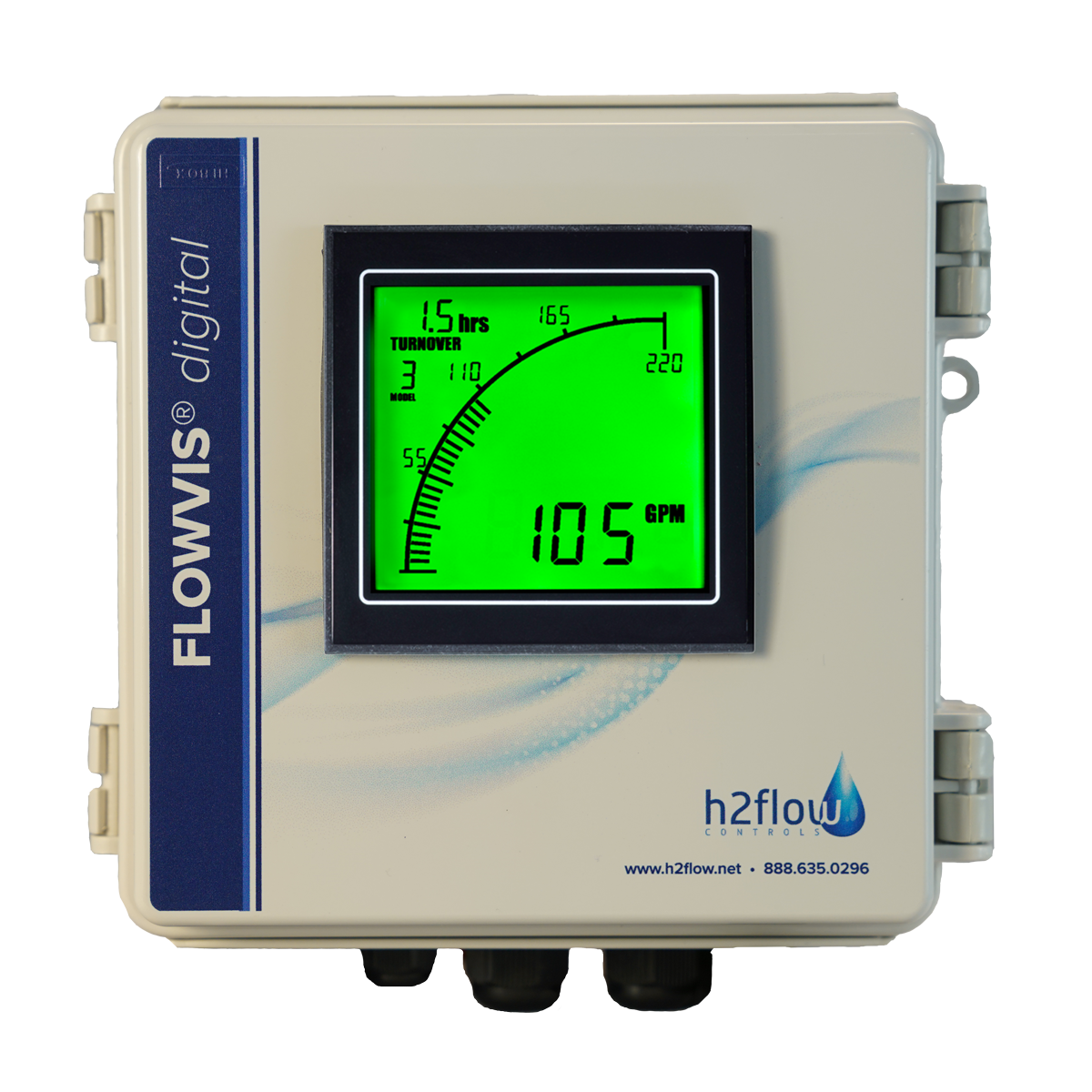

The FlowVis® Digital flow meter is designed with accuracy and reliability in mind, but its impressive >98% accuracy and unparalleled reliability are just a starting point. A wide array of advanced features and functionality, uncompromising build quality, and incredible value are what really set it apart from the competition.

• Retrofittable with the following analog FlowVis® models: FV-C-15; FV-15; FV-15-U; FV-2; FV-2-U; FV-25; FV-C; FV-C-L; FV-C-S; FV-C-S-L; FV-3; FV-3-L; FV-4; FV-4-L; FV-6; FV-6-L; FV-8; FV-8-L; FV-C-M-DN50; FV-C-M-DN65; FV-C-M-DN65-HF-S; FV-C-M-DN80; FV-C-M-DN100; FV-C-M-DN150; FV-C-M-DN200

• Pool Turnover Rate functionality

• Ability to interface with a multitude of other equipment

• >98% accurate

• Ability to set flow rate alarms

• Offers remote indication of flow

• Manufactured in the USA

• 3-year warranty

By going through the ‘Advanced Setup’ procedures of FlowVis® Digital, several very useful features can be accessed. These features include:

• Display of turnover rate (i.e., swimming pool turnover rate)

• Changing the display’s appearance at a user-defined flow rate

• Programming an (optional) auxiliary relay to operate external equipment such as a Heater or Chemical Feed System, to only operate at user-defined flow rates.

In order to access these features, the Advanced Panel Display (APM) Configurator needs to be downloaded (button below). Please refer to the FlowVis® Digital manual for step-by-step instructions.

One of the key benefits of using a commercial grade Variable Frequency Drive (VFD), such as H2flow’s Eco-Flow®-C is the ability to achieve a constant flow rate even as the filter starts to load up.

As the filter starts to become dirty, the VFD will slowly ramp up the pump’s speed to maintain a constant flow rate. However, in order to achieve this significant benefit, a good quality flow meter with a 4-20 mA output is required. In addition to it’s remarkable accuracy and user-friendliness, FlowVis® Digital also has the 4-20mA output the VFD requires in order to maintain constant flow. Upgrading from FlowVis® to the new FlowVis® Digital will provide both the accuracy and ease of installation desired.

FV-3-R

Exchange lid assembly for Digital upgrade for FlowVis® model FV-3. Scale in GPM. Required for all existing ‘pre- Oct. 2020’ FV-3 installations.

FV-4-R

Exchange lid assembly for Digital upgrade for FlowVis model FV-4. Scale in GPM. Required for all existing ‘pre-Oct. 2020’ FV-4 installations.

FV-4-L-R

Exchange lid assembly for Digital upgrade for FlowVis® model FV-4-L. Scale in LPM. Required for all existing ‘pre-Oct. 2020’ FV-4-L installations.

FV-DN100-R

Exchange lid assembly for Digital upgrade for FlowVis® model FV-4-L. Scale in LPM. Required for all existing ‘pre-Oct. 2020’ FV-4-L installations.

FVD-EC

Display Extension Cable; 8 meters (26.25ft.).

FVD-RK

Relay Interface Kit.
