PROCESSDEFENDER™
Stop damage and downtime before it occurs
Protecting motor driven equipment with ProcessDefender™ can alert the operator to events such as pump run dry, dead head, cavitation, or a closed suction valve. An alert can be as simple as a visual operator alarm, a signal to a plant DCS, or a direct local shut down of the motor. Either way, ProcessDefender™ will react quickly enough to protect the equipment from damage and downtime.
Features include:
Motor Load monitoring uses the motor as a sensor to prevent damage and downtime
Display motor load as either HP, kW, % of Motor Power
Overload and underload protection
Built-in Real time Clock
Certified to UL, cUL, and CE
pd configurator Firmware
Are you setting up your ProcessDefender unit? Click the button below to download the PD configurator firmware to get started.
PRODUCT LITERATURE
SPECIFICATIONS
| Supply Voltage | 1 x 100-240 VAC &;amp 3 x 100-480 VAC |
| Frequency | 45 Hz to 65 Hz |
| Rated Current | Up to 999 A via current transformer |
| Output Relays | 3 |
| Modbus Configurable | Yes |
| Accuracy | ≥98% |
| Repeatability | ≥99% |
| Protection Class | NEMA 4 / IP65 (HMI only) |
| Approvals | UL, cUL, CE |
attributes of the ProcessDefeender™
| Feature | |
| Arc Flash protection for User/Engineer | |

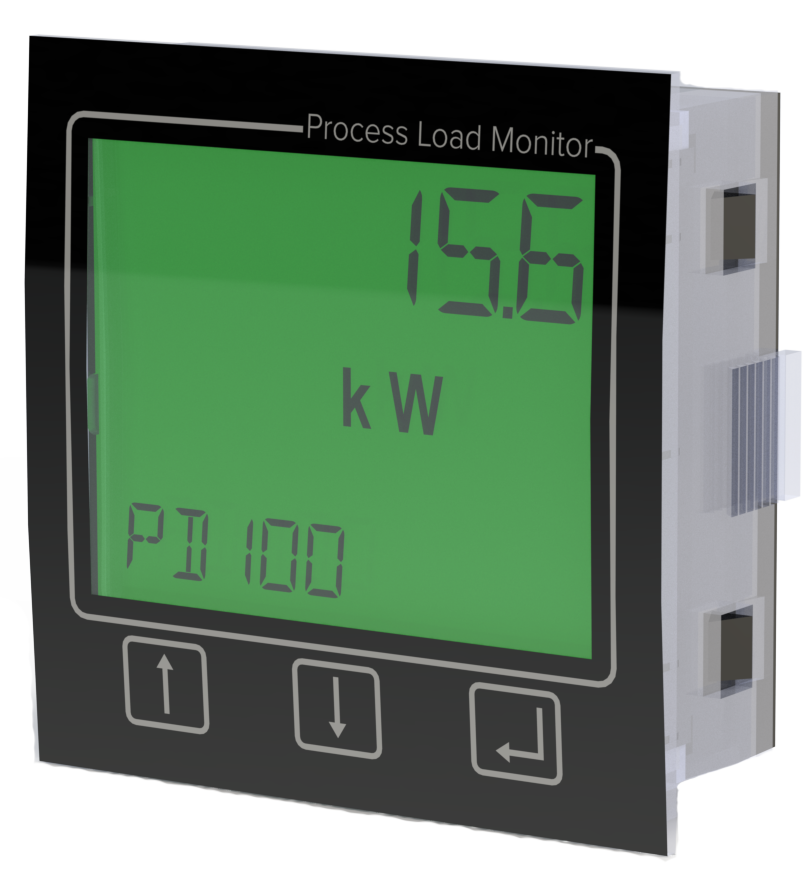

| Custom, large-format externally mounted HMI | |
| Single model for all voltages 100-500VAC | |
| Split core CT's to aid installation | |
| Three independent alarm relays | |
| Process Overload Protection | |
| Process Underload Protection | |
| Process Overload Pre-Alarm with dedicated independent relay | |
| Process Underload Pre-Alarm with dedicated independent relay | |
| Ability to latch or unlatch all alarm relays | |
| Ability to apply hysteresis to all unlatched alarm relays | |
| Real time clock with date | |
| Event logging with time and date stamp | |
| Auto setting of protection parameters | |
| Over- and Under-voltage protection with independent relay | |
| Firmware updates applied by user | |
| Lockable program settings | |
| Programmable via external HMI | |
| Designed for MCC applications | |
| Programming assistance via QR code accessed online videos | |
| Configurable via Modbus | |
| Equipment Run Time | |
| Modbus Parameters / Addresses displayed on HMI |
*Feature available Summer 2022
