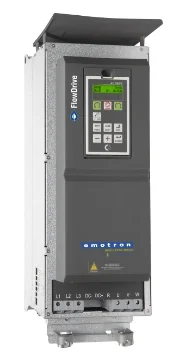

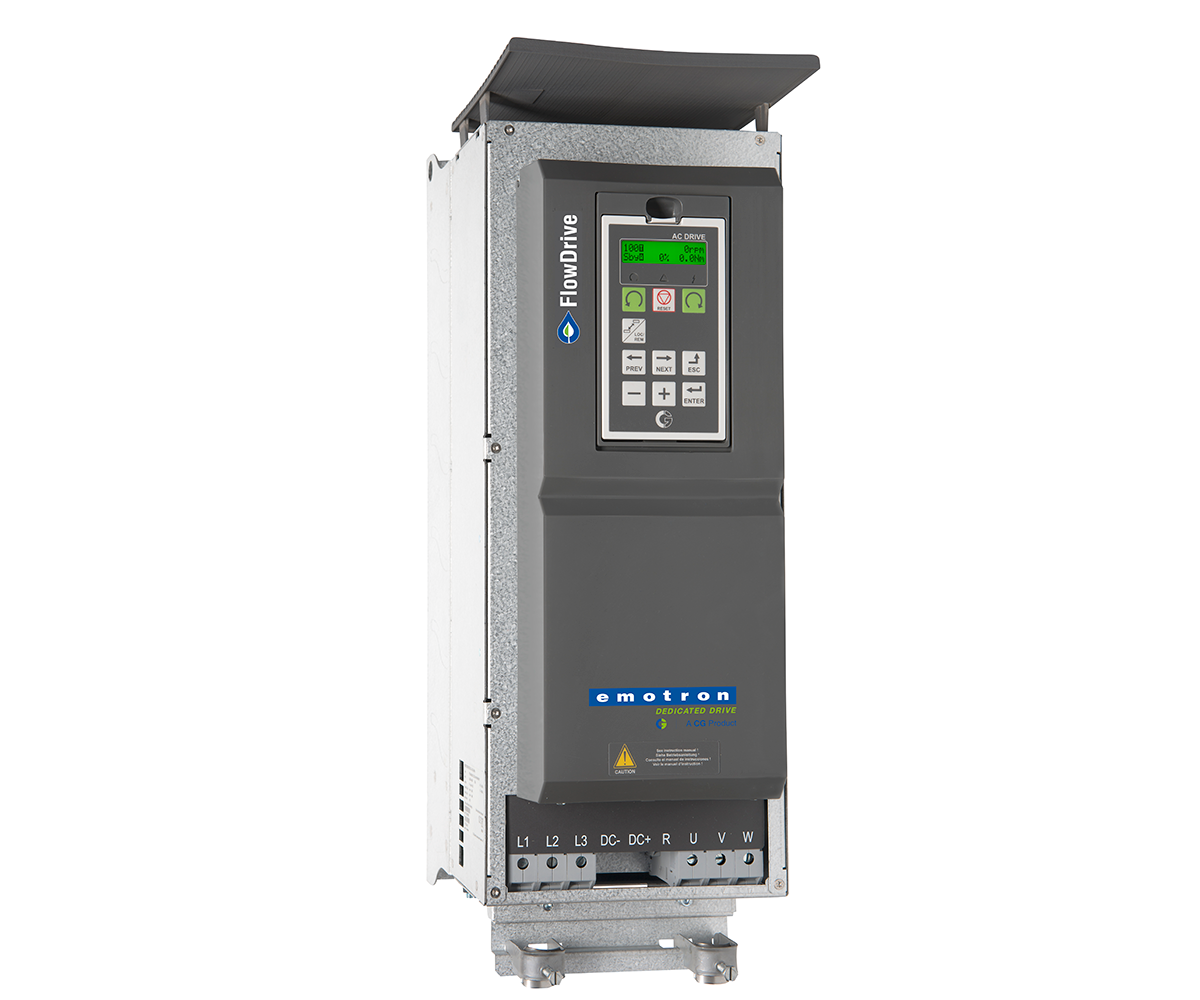

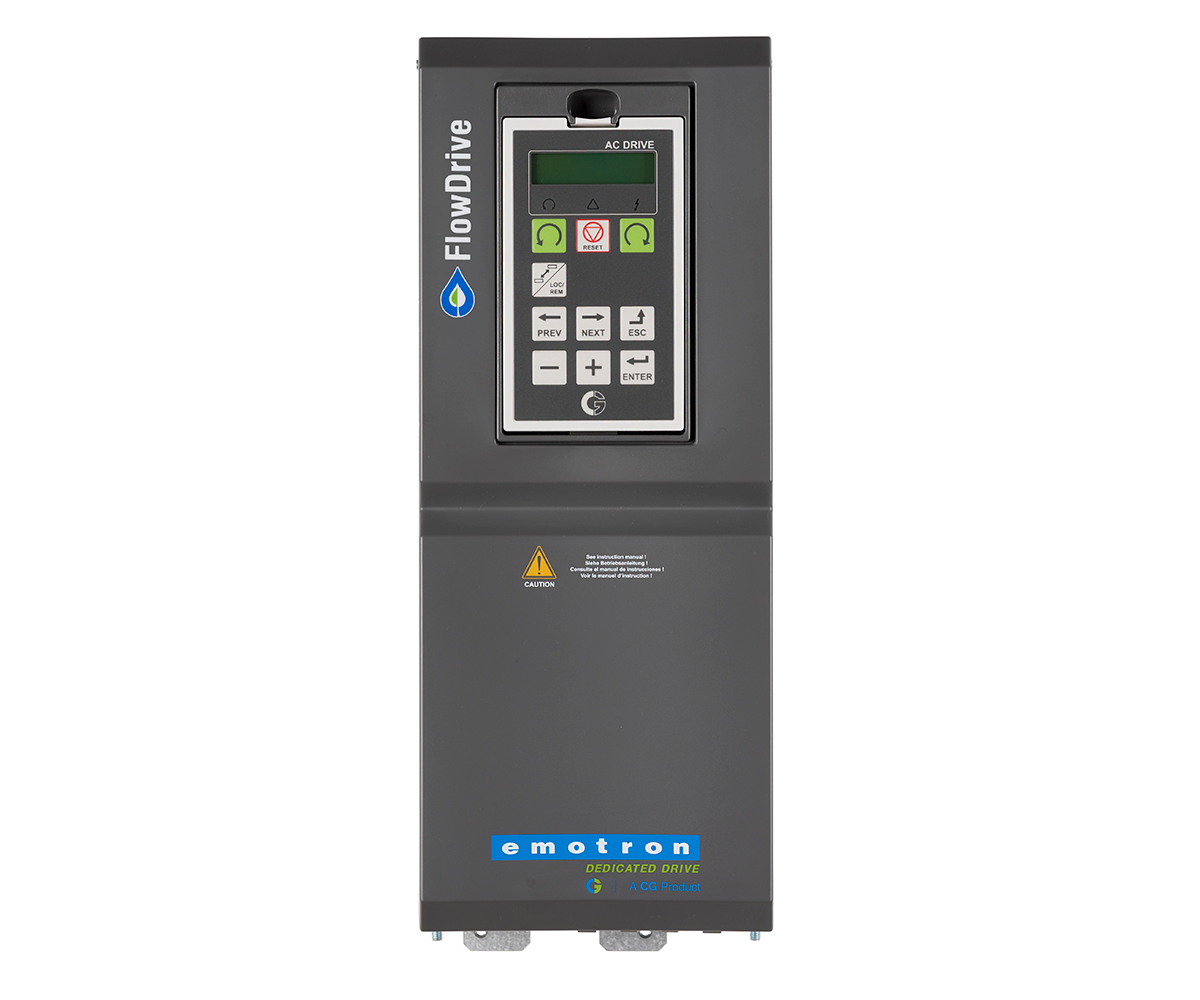

The Emotron FlowDrive is designed for use in the most common pumping scenarios (1-2 pumps of any brand) in the wastewater management industry. The heart of FlowDrive is automatic reservoir level control - which optimizes energy use, minimizes the need for maintenance, and enables real-time process monitoring.

Key Features & Benefits

• Design utilizes Emotron's long history of well-proven products for water and waste water industry

• Energy savings, thanks to automatic optimal pump speed control

• Compatibility with all kinds of pumps typically used in this application

• Built-in functions that minimize maintenance needs

• Absence of a PLC/pump controller reduces cost and effort involved in programming

• Having one less component reduces complexity and increases reliability

• Less starts and stops of the pumps thanks to longer run times caused by lower average frequency

• Full connectivity to suit different user scenarios (remote telemetry/local control panel)

• Complete solution packaged that is simple to install and use

• Access to system data/parameters for continuous performance monitoring

• Existing Emotron equipment can be upgraded to Emotron FlowDrive

self-learning system

During the commissioning of FlowDrive, the user configures all motor data and levels. The self-learning program then takes over, taking the measurements and calculating process data to enable optimal control. Features include load monitoring, best efficiency point and flow estimation.

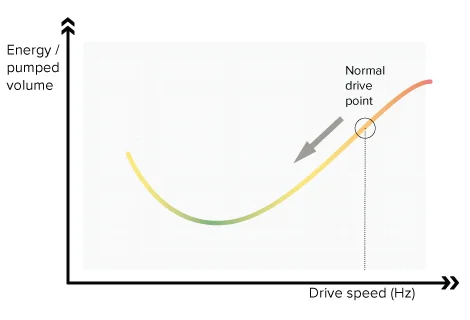

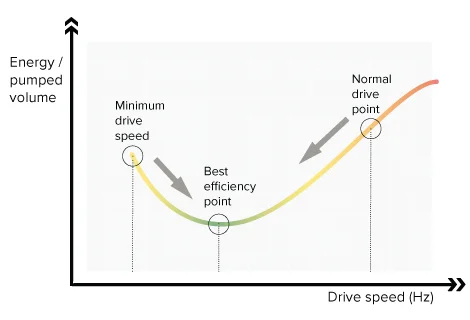

best efficiency point (bep) algorithm

Initially, the drive operates in learn mode in order to establish the most efficient operating parameters for the BEP algorithm. By running the pump over a range of frequencies and measuring the volumes pumped, it defines the most energy efficient pumping frequency, and calibrates the related functions accordingly. Thereafter, the reservoir level control operates according to these defined values.

no flow sensor required

Once the initial commissioning program has been run, the FlowDrive can estimate in and out flow without the need for a costly external flow sensor. If more accurate flow measurements are required for other reasons, the FlowDrive does, however, support the use of an external sensor.

• Current sump/tank level (meters)

• Run hours (cumulative and daily)

• Number of starts (cumulative and daily)

• Energy consumption (cumulative, with savings compared with running at full speed)

• Current waste water in-flow

• Current pumping out-flow

• Maintenance personnel on-site alarm
